2w/20w selector

Ultralinear master volume

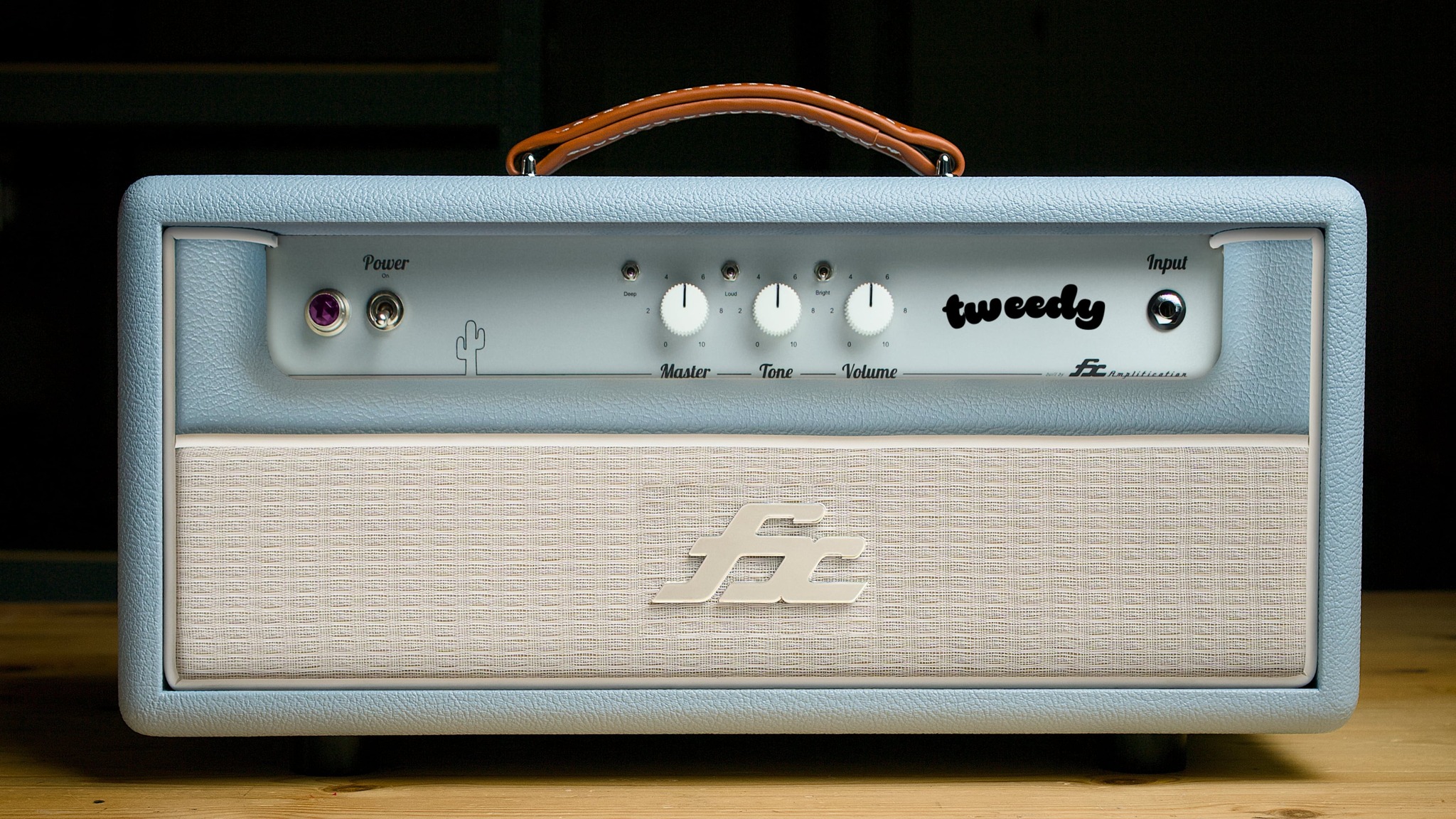

Tweedy

Spice up your sound

Wild tweed sounds, raw and fuzzy, for all southern blues style, ZZ’ style!

In the early days of blues music, tweed covered amp from a famous US brand were all the rage.

With their hot and raw temperament, they basically invented the US southern blues sound.

Sound is going from a warm bluesy clean at the start of the GAIN course, to a fuzzy wild overdrive when pushed above 8/10.

The TONE control range from a felted warm sound to a more aggressive/bleeding character.

The BRIGHT switch give the amp a slightly bright push, ideal for clean playing with single coil pickups.

Finally the DEEP switch can give a little boost in the low mid, usefull for some loudspeaker.

Features

Quiet play

The Tweedy has the special « ultralinear master volume » technology, designed to play at any level, even at very low level at night. That master volume is very progressive, and easy to set even at low level. There is no jump in level like with a typical master volume, and it remains progressive until the end of the course. The amp also has a 20w/2w for the most quiet conditions, with a slight frequency correction in 2w mode to compensate for the bright response of some speakers at low level.

No Bias System

Change your tubes yourself, at home, no equipment needed. Freely choose between 6L6 and EL34 power tubes, you can even mix a 6L6 and an EL34. Procedure is quick, easy, and without risk. This will save you hundreds in maintenance every year, and will allow you to test many tube brands and combinations.

Big tubes

Were other amps uses cheaper EL84 tubes to get 20w, all FX amplifiers uses big EL34 or 6L6 tubes, just like the big 100w stack amps. These big tubes give a more massive sound, with increased bass response, even a low level. BIG TUBES = BIG SOUND!

Smart connections

The head version (and reverse head) features two speaker outputs in parallel, along with a 4/8/16 ohms impedance selector. This allows a variety of possible connections, with one or two cabinets from various impedances.

The combo version offers exactly the same outputs, and the speaker is externally connected (cable included). This allows for multiple smart connections. You can use the internal speaker alone, internal speaker + external cabinet, one external cabinet only, two external cabinets. It also allows the use of an attenuator with internal speaker or external cabinet, and the use of a loadbox for silent recording. Finally you can also use the combo as a cabinet for an external amplifier (In that case, turn off the amplifier section of the combo!!!)

DC tube heating

Heating tubes with DC current is quiter than the usual AC wiring. It takes more time to wire, and it’s a little bit more expensive, but it’s really worth it. Your Fx amplifier is guaranteed to be as quiet as possible.

Specifications

Finish : Customers choice.

Controls : Gain/Tone/Volume + bright + deep + loud/quiet.

Features : Tube buffered effect loop, 16/8/4 ohms selector + 2x speaker outputs in parallel.

Power : Single ended, Class A, 20w switchable to 2w. Available in 115v or 230v.

Tubes : 2x 12ax7 + 2x 6L6. User swappable/mixable EL34/6L6 power tube, no bias needed.

Construction : Point to point, handwired.

Dimensions : 50cm wide, 22cm high, 21cm deep & 13kg

Recommended speaker : Celestion A-Type or Celestion Alnico Gold.

Gain
Vintage -> Modern

FAQ / Manuals

How can I replace my tube?

Changing tubes in your Fx amplifier is very simple.

First unplug the amp, and let it sit for few seconds unplugged. If the amp had been recently used, wait for a while for the tubes to cool down, as they can become very hot!

Remove the back plate by unscrewing the 4 screws.

Remove existing tube by pulling it upward, and gently moving it left/right.

Place the new tube by simply plugging it, while taking care of the orientation of the tube. Preamp tubes have 9 pins, and a void, so rotate the tube to align the pins with the holes in the socket. Power tubes have 8 pins, and a central part with a small bump. That small bump should be align with a matching cut into the center of the socket to ensure proper placement.
DO NOT FORCE TOO MUCH, it should get in place pretty easily.

That’s it, no BIAS setting or anything else required, you’re good to go!

How to plug my amp to a cab?

To use your amplifier, you need a cabinet (or a loadbox, but it works the same way).

Fx amplifiers provide two speaker outputs, in parallel. You can use one or the other, or both.

When using a single cabinet, simple set the impedance selector to match the impedance of your cabinet.

When using two cabinets, please use two cabinets with the same impedance, and set the selector impedance to half the impedance of a cabinets, ie if you have two 16ohms cabinets plugged, set the impedance selector to 8ohms.

Fx combo amplifiers are not internally wired, to allow for a variety of possible connexions, so you must use an external speaker cable to connect the amplifier block to the internal speaker, or to an external one. You can also use the internal speaker + an external one, or two external speakers. In that case just follow the impedance rule given above.

ALWAYS CONNECT A SPEAKER BEFORE USE.

ONLY USE A DEDICATED SPEAKER CABLE. Do not use simple guitar cable, or any other kind of cable.

Demos

Some amps we built.

]]> https://www.ampsandtubes.com/shop/tweedy/feed/ 1 Dr.Blues https://www.ampsandtubes.com/shop/drblues/ https://www.ampsandtubes.com/shop/drblues/#respond Mon, 27 Jan 2025 08:37:54 +0000 https://www.ampsandtubes.com/?post_type=product&p=5105

Ultralinear master volume for both channels

Global 3-band tonestack

Front channel switch

Dr.Blues

Bluesy buddy

Discover the new ACE Dr.Blues

20w of US blues-rock sounds. 2 channels, 6L6 20w power section, tube effect loop.

The first channel is a blackface inspired clean channel. Hot and bright, it has a bright cap for extra definition even a low gain settings. Perfect for arpeggios or cleaner blues solo a la BB King with its punchy bass response.

The second channel is reminiscent of the clean channel, but with more gain, and a slightly warmer sound, this channel has no bright cap on it. Ideal for playing blues solo like SRV, but also sounds very good for more contemporary pop rhythm guitars.

The EQ is very effective at fine tuning your sound and is shared between the two channels.

Features

Quiet play

The Dr.Blues uses the special “ultralinear master volume” technology, introduced by the Fxamps amplifiers, designed to play at any level, even at very low level at night. It even has a 20w/2w for the most quiet conditions.

No Bias System

Change your tubes yourself, at home, no equipment needed. Freely choose between 6L6 and EL34 power tubes, you can even mix a 6L6 and an EL34.

Big tubes

Were other amps uses cheaper EL84 tubes to get 20w, all ACE models uses big EL34 or 6L6 tubes, just like the big 100w stack amps. These big tubes give a more massive sound, with increased bass response, even a low level. BIG TUBES = BIG SOUND!

Lightweight construction

Aluminium construction keep the weight low, 7.5kg only in lunchbox version. It also keep the noise away, acting like insulation against electromagnetic perturbations.

Specifications

Controls : Gain 1/Gain 2/Bass/Mid/Treble/Volume 1/Volume 2.

Features : Tube buffered effect loop, 8 + 16 ohms speaker outputs.

Power : Single ended, Class A, 20w switchable to 2w. 230v only!

Tubes : 2x 12ax7 + 2x 6L6. User swappable/mixable EL34/6L6 power tube, no bias needed.

Construction : High quality 2mm thick PCB, with double copper thickness for better reparability.

Dimensions : 37cm wide, 20cm high, 20cm deep & 7.5kg.

Recommended speaker : Celestion A-Type.

Some amps we built.

]]> https://www.ampsandtubes.com/shop/drblues/feed/ 0 Suprah https://www.ampsandtubes.com/shop/suprah/ https://www.ampsandtubes.com/shop/suprah/#respond Thu, 08 Aug 2024 08:15:56 +0000 https://www.ampsandtubes.com/?post_type=product&p=4963 Build to Order. Building time : approx [cgv amptime] weeks.]]>

Bright switch

Deep switch

Ultralinear master volume

2w/20w switch

Suprah

Pedalboard's friend

Your ideal pedals platform.
Inspired by the famous super reverb amp, the Suprah is capable of nice blackface cleans to light crunches, and it can also be dialed to get a neutral clean to use overdrive/distortions in front of the amp, with plenty of headroom.

Features

Quiet play

The Suprah has the special « ultralinear master volume » technology, designed to play at any level, even at very low level at night. That master volume is very progressive, and easy to set even at low level. There is no jump in level like with a typical master volume, and it remains progressive until the end of the course. The amp also has a 20w/2w for the most quiet conditions, with a slight frequency correction in 2w mode to compensate for the bright response of some speakers at low level.

No Bias System

Change your tubes yourself, at home, no equipment needed. Freely choose between 6L6 and EL34 power tubes, you can even mix a 6L6 and an EL34. Procedure is quick, easy, and without risk. This will save you hundreds in maintenance every year, and will allow you to test many tube brands and combinations.

Big tubes

Were other amps uses cheaper EL84 tubes to get 20w, all FX amplifiers uses big EL34 or 6L6 tubes, just like the big 100w stack amps. These big tubes give a more massive sound, with increased bass response, even a low level. BIG TUBES = BIG SOUND!

Smart connections

The head version (and reverse head) features two speaker outputs in parallel, along with a 4/8/16 ohms impedance selector. This allows a variety of possible connections, with one or two cabinets from various impedances.

The combo version offers exactly the same outputs, and the speaker is externally connected (cable included). This allows for multiple smart connections. You can use the internal speaker alone, internal speaker + external cabinet, one external cabinet only, two external cabinets. It also allows the use of an attenuator with internal speaker or external cabinet, and the use of a loadbox for silent recording. Finally you can also use the combo as a cabinet for an external amplifier (In that case, turn off the amplifier section of the combo!!!)

DC tube heating

Heating tubes with DC current is quiter than the usual AC wiring. It takes more time to wire, and it’s a little bit more expensive, but it’s really worth it. Your Fx amplifier is guaranteed to be as quiet as possible.

Specifications

Finish : Customers choice.

Controls : Gain/Bass/Mid/Treble/Volume + bright + deep + loud/quiet.

Features : Tube buffered effect loop, 16/8/4 ohms selector + 2x speaker outputs in parallel.

Power : Single ended, Class A, 20w switchable to 2w. Available in 115v or 230v.

Tubes : 2x 12ax7 + 2x 6L6. User swappable/mixable EL34/6L6 power tube, no bias needed.

Construction : Point to point, handwired.

Dimensions : 50cm wide, 22cm high, 21cm deep & 13kg

Recommended speaker : Celestion A-Type or Celestion V-Type.

Gain
Vintage / Modern

Demos

Some amps we built.

]]> https://www.ampsandtubes.com/shop/suprah/feed/ 0 Custom 1ch https://www.ampsandtubes.com/shop/custom-1ch/ https://www.ampsandtubes.com/shop/custom-1ch/#respond Fri, 02 Aug 2024 08:57:09 +0000 https://www.ampsandtubes.com/?post_type=product&p=4832 Build to Order. Building time : approx [cgv customtime] weeks.]]>

CUSTOM AMPLIFIER

Your style, your sound

Can’t find what you’re looking for in our already vast offer?
Don’t worry, we can do even more!

Starting from our existing 20w/2w platform, we can adapt it to a variety of sounds and style.
Create your own ultimate single channel amplifier!
You can chose your own channel, add a custom designed faceplate, possibilities are endless.

Quiet play

Custom designed amplifier will embed our special “ultralinear master volume” technology, designed to play at any level, even at very low level at night. It even has a 20w/2w for the most quiet conditions.

No Bias System

Change your tubes yourself, at home, no equipment needed. Freely choose between 6L6 and EL34 power tubes, you can even mix a 6L6 and an EL34.

Specifications

Finish : Customers choice  > Click to see our options <

Controls : Depends on channels choice.

Features : Tube buffered effect loop, 16/8/4 ohms selector + 2x speaker outputs.

Power : Single ended, Class A, 20w switchable to 2w. Available in 115v or 230v.

Tubes : 3x 12ax7 + 2x EL34. User swappable/mixable EL34/6L6 power tube, no bias needed.

Construction : Point to point, handwired.

Dimensions : 50cm wide, 22cm high, 21cm deep & 13kg

Some amps we built

]]> https://www.ampsandtubes.com/shop/custom-1ch/feed/ 0 Dual Custom https://www.ampsandtubes.com/shop/custom-2ch/ https://www.ampsandtubes.com/shop/custom-2ch/#respond Fri, 02 Aug 2024 08:38:24 +0000 https://www.ampsandtubes.com/?post_type=product&p=4810 Build to Order. Building time : approx [cgv customtime] weeks.]]>

DUAL CUSTOM

Your style, your sound

Can’t find what you’re looking for in our already vast offer?
Don’t worry, we can do even more!

Starting from our existing 20w/2w platform, we can adapt it to a variety of sounds and style.
Create your own ultimate 2 channels amplifier!
You can chose and mix 2 totally different channels, add a custom designed faceplate, possibilities are endless.

Quiet play

Custom designed DUAL will embed our special “ultralinear master volume” technology, designed to play at any level, even at very low level at night. It even has a 20w/2w for the most quiet conditions.

No Bias System

Change your tubes yourself, at home, no equipment needed. Freely choose between 6L6 and EL34 power tubes, you can even mix a 6L6 and an EL34.

Specifications

Finish : Customers choice  > Click to see our options <

Controls : Will depends on channels choice.

Features : Tube buffered effect loop, 16/8/4 ohms selector + 2x speaker outputs.

Power : Single ended, Class A, 20w switchable to 2w. Available in 115v or 230v.

Tubes : 4x 12ax7 + 2x EL34. User swappable/mixable EL34/6L6 power tube, no bias needed.

Construction : Point to point, handwired.

Dimensions : 50cm wide, 22cm high, 21cm deep & 13kg

Some amps we built

]]> https://www.ampsandtubes.com/shop/custom-2ch/feed/ 0 DOS https://www.ampsandtubes.com/shop/dos/ https://www.ampsandtubes.com/shop/dos/#respond Thu, 01 Aug 2024 11:14:12 +0000 https://www.ampsandtubes.com/?post_type=product&p=4759
The most famous boutique amps of all. Build to Order. Building time : approx [cgv amptime] weeks.
]]>

D.O.S.

The most famous boutique amps of all.

The typical “pumping” clean sound up to a nice warm overdrive.

Features

Real Stack

The D.O.S. introduce the new Real Stack technology. The Real Stack is the natural evolution of our constant quest to recreate the sound and feeling from a big 100w into a more suitable 20w format that modern guitarists can use small gig as well at home.

Super touch sensitive, very reactive to your playing, just like the original.

No Bias System

Change your tubes yourself, at home, no equipment needed. Freely choose between 6L6 and EL34 power tubes, you can even mix a 6L6 and an EL34. Procedure is quick, easy, and without risk. This will save you hundreds in maintenance every year, and will allow you to test many tube brands and combinations.

Big tubes

Where other amps uses cheaper EL84 tubes to get 20w, all FX amplifiers uses big EL34 or 6L6 tubes, just like the big 100w stack amps. These big tubes give a more massive sound, with increased bass response, even a low level. BIG TUBES = BIG SOUND!

Smart connections

The head version (and reverse head) features two speaker outputs in parallel, along with a 4/8/16 ohms impedance selector. This allows a variety of possible connections, with one or two cabinets from various impedances.

The combo version offers exactly the same outputs, and the speaker is externally connected (cable included). This allows for multiple smart connections. You can use the internal speaker alone, internal speaker + external cabinet, one external cabinet only, two external cabinets. It also allows the use of an attenuator with internal speaker or external cabinet, and the use of a loadbox for silent recording. Finally you can also use the combo as a cabinet for an external amplifier (In that case, turn off the amplifier section of the combo!!!)

DC tube heating

Heating tubes with DC current is quiter than the usual AC wiring. It takes more time to wire, and it’s a little bit more expensive, but it’s really worth it. Your Fx amplifier is guaranteed to be as quiet as possible.

Specifications

Finish : Customers choice.

Controls : Gain/Bass/Mid/Treble/Volume + bright.

Features : 16/8/4 ohms selector + 2x speaker outputs in parallel.

Power : Single ended, Class A, 20w switchable to 2w. Available in 115v or 230v.

Tubes : 3x 12ax7 + 2x 6L6. User swappable/mixable EL34/6L6 power tube, no bias needed.

Construction : Point to point, handwired.

Dimensions : 50cm wide, 22cm high, 21cm deep & 13kg

Recommended speaker : Celestion g12m Alnico Gold.

Gain
Vintage -> Modern

Some amps we built

]]> https://www.ampsandtubes.com/shop/dos/feed/ 0 Bad Train https://www.ampsandtubes.com/shop/badtrain/ https://www.ampsandtubes.com/shop/badtrain/#respond Thu, 01 Aug 2024 10:35:06 +0000 https://www.ampsandtubes.com/?post_type=product&p=4749
The famous boutique wrecked amp is back. Build to Order. Building time : approx [cgv amptime] weeks.
]]>

Bad train

The famous boutique wrecked amp is back.

Crystal cleans to fuzzy crunches, with tons of dynamics.

Real Stack

The Bad Train uses our new Real Stack technology. Real Stack is the natural evolution of our constant quest to recreate the sound and feeling from a big 100w into a more suitable 20w format that modern guitarists can use small gig as well at home.

Super touch sensitive, very reactive to your playing, just like the original.

No Bias System

Change your tubes yourself, at home, no equipment needed. Freely choose between 6L6 and EL34 power tubes, you can even mix a 6L6 and an EL34.

Specifications

Finish : Customers choice  > Click to see our options <

Controls : Gain/Bass/Mid/Treble/Volume + bright

Features : Tube buffered effect loop, 16/8/4 ohms selector + 2x speaker outputs.

Power : Single ended, Class A, 20w switchable to 2w. Available in 115v or 230v.

Tubes : 3x 12ax7 + 2x EL34. User swappable/mixable EL34/6L6 power tube, no bias needed.

Construction : Point to point, handwired.

Dimensions : 50cm wide, 22cm high, 21cm deep & 13kg

Recommended speaker : Celestion Alnico Gold (Fxamps 1×12″ classic).

Gain
Vintage / Modern

Some amps we built

]]> https://www.ampsandtubes.com/shop/badtrain/feed/ 0 Pimento https://www.ampsandtubes.com/shop/pimento/ https://www.ampsandtubes.com/shop/pimento/#respond Thu, 01 Jun 2023 08:16:37 +0000 https://www.ampsandtubes.com/?post_type=product&p=3825

Ultralinear master volume for both channels

Drive channel EQ

Front channel switch

Pimento

Caliente

The new Pimento is the spiciest of all ACE amplifiers.

Blackface cleans

The first channel of the Pimento is a dedicated clean channel inspired by the famous blackface circuits. Hot and bright, with punchy basses, it can goes from the cleanest sound to a nice and fat bluesy crunch. At lowest gain settings, sound is very clean, with lots of definition, very dynamic and reactive to your playing. This channel has a bright cap, so at low gain settings the amp doesn’t lose dynamic and stay clean and bright. At highest gain, the amp become wilder, with fat and slightly fuzzy basses, perfect for blues rhythm and has even enough for solos. Despite its single control, that channel is very versatile and will accommodate a very wide range of guitars and styles.

British drive … with a twist

The Drive channel is greatly inspired by our Colt model, but we made some slight changes to make it “spicier”. That channel is capable of very nice light crunches at lower gain settings, with a great vintage gain, and become progressively wilder and slightly more fuzzy and agressive at higher gains. With it’s dedicated 3-band tonestack, it can cover a wide range of drive sounds.

All in all, the Pimento is probably the most versatile ACE model to date, from clean blues to 80’s hard rock, it can play almost everything, always with it’s own character.

Features

Quiet play

The Pimento uses the special “ultralinear master volume” technology, introduced by the Fxamps amplifiers, designed to play at any level, even at very low level at night. It even has a 20w/2w for the most quiet conditions.

No Bias System

Change your tubes yourself, at home, no equipment needed. Freely choose between 6L6 and EL34 power tubes, you can even mix a 6L6 and an EL34.

Big tubes

Were other amps uses cheaper EL84 tubes to get 20w, all ACE models uses big EL34 or 6L6 tubes, just like the big 100w stack amps. These big tubes give a more massive sound, with increased bass response, even a low level. BIG TUBES = BIG SOUND!

Lightweight construction

Aluminium construction keep the weight low, 7.5kg only in lunchbox version. It also keep the noise away, acting like insulation against electromagnetic perturbations.

8000h rated capacitors

Totally transparent relay switching

Thick 2mm circuit board

Inox screws for best durability

Specifications

Controls : Gain 1/Gain 2/Bass/Mid/Treble/Volume 1/Volume 2.

Features : Tube buffered effect loop, 8 + 16 ohms speaker outputs.

Power : Single ended, Class A, 20w switchable to 2w. 230v only!

Tubes : 4x 12ax7 + 2x EL34. User swappable/mixable EL34/6L6 power tube, no bias needed.

Construction : High quality 2mm thick PCB, with double copper thickness for better reparability.

Dimensions : 37cm wide, 20cm high, 20cm deep & 7.5kg.

Recommended speaker : Celestion V-Type or Celestion g12m Creamback.

Gain
Vintage / Modern

FAQ / Manuals

How can I replace my tube?

Changing tubes in your ACE amplifier is very simple.

First unplug the amp, and let it sit for few seconds unplugged. If the amp had been recently used, wait for a while for the tubes to cool down, as they can become very hot!

Remove the cover plate by unscrewing the 4 screws, 2 on both sides.

Remove existing tube by pulling it upward, and gently moving it left/right.

Place the new tube by simply plugging it, while taking care of the orientation of the tube. Preamp tubes have 9 pins, and a void, so rotate the tube to align the pins with the holes in the socket. Power tubes have 8 pins, and a central part with a small bump. That small bump should be align with a matching cut into the center of the socket to ensure proper placement.
DO NOT FORCE TOO MUCH, it should get in place pretty easily.

That’s it, no BIAS setting or anything else required, you’re good to go!

How to plug my amp to a cab?

To use your amplifier, you need a cabinet (or a loadbox, but it works the same way).

ACE amplifiers provide two speaker outputs, a 8ohms output and a 16ohms output. Use one or the other depending on the impedance of your cabinet : impedance of the cabinet should be the same as the impedance of the output.

NEVER USE BOTH OUTPUTS AT THE SAME TIME.

ALWAYS CONNECT A SPEAKER BEFORE USE.

ONLY USE A DEDICATED SPEAKER CABLE. Do not use simple guitar cable, or any other kind of cable.

Test du Pimento par Guitarpart (en Francais)

>>> Lire le test <<<

Demos

]]> https://www.ampsandtubes.com/shop/pimento/feed/ 0 Brittany https://www.ampsandtubes.com/shop/brittany/ https://www.ampsandtubes.com/shop/brittany/#respond Thu, 13 Oct 2022 06:53:56 +0000 https://www.ampsandtubes.com/?post_type=product&p=3637
Our take on the famous boutique classe A british amplifier. From chimey cleans to raw crunches, cover all the british pop classics. Build to Order. Building time : approx [cgv amptime] weeks.
]]>

Bright switch

Deep switch

Ultralinear master volume

2w/20w switch

Brittany

British boutique

Our take on the famous boutique classe A british amplifier.

From chimey cleans to raw crunches, cover all the classics from “where the streets have no name” to “tie your mother down”.

Features

Quiet play

The Brittany has the special « ultralinear master volume » technology, designed to play at any level, even at very low level at night. That master volume is very progressive, and easy to set even at low level. There is no jump in level like with a typical master volume, and it remains progressive until the end of the course. The amp also has a 20w/2w for the most quiet conditions, with a slight frequency correction in 2w mode to compensate for the bright response of some speakers at low level.

No Bias System

Change your tubes yourself, at home, no equipment needed. Freely choose between 6L6 and EL34 power tubes, you can even mix a 6L6 and an EL34. Procedure is quick, easy, and without risk. This will save you hundreds in maintenance every year, and will allow you to test many tube brands and combinations.

Big tubes

Were other amps uses cheaper EL84 tubes to get 20w, all FX amplifiers uses big EL34 or 6L6 tubes, just like the big 100w stack amps. These big tubes give a more massive sound, with increased bass response, even a low level. BIG TUBES = BIG SOUND!

Smart connections

The head version (and reverse head) features two speaker outputs in parallel, along with a 4/8/16 ohms impedance selector. This allows a variety of possible connections, with one or two cabinets from various impedances.

The combo version offers exactly the same outputs, and the speaker is externally connected (cable included). This allows for multiple smart connections. You can use the internal speaker alone, internal speaker + external cabinet, one external cabinet only, two external cabinets. It also allows the use of an attenuator with internal speaker or external cabinet, and the use of a loadbox for silent recording. Finally you can also use the combo as a cabinet for an external amplifier (In that case, turn off the amplifier section of the combo!!!)

DC tube heating

Heating tubes with DC current is quiter than the usual AC wiring. It takes more time to wire, and it’s a little bit more expensive, but it’s really worth it. Your Fx amplifier is guaranteed to be as quiet as possible.

Specifications

Finish : Customers choice.

Controls : Gain/Bass/Mid/Treble/Volume + bright + deep + loud/quiet.

Features : Tube buffered effect loop, 16/8/4 ohms selector + 2x speaker outputs in parallel.

Power : Single ended, Class A, 20w switchable to 2w. Available in 115v or 230v.

Tubes : 3x 12ax7 + 2x EL34. User swappable/mixable EL34/6L6 power tube, no bias needed.

Construction : Point to point, handwired.

Dimensions : 50cm wide, 22cm high, 21cm deep & 13kg

Recommended speaker : Celestion V-Type or Celestion Alnico Gold.

Gain
Vintage -> Modern

Demos

Some amps we built.

]]> https://www.ampsandtubes.com/shop/brittany/feed/ 0 eVo https://www.ampsandtubes.com/shop/evo/ https://www.ampsandtubes.com/shop/evo/#respond Mon, 01 Mar 2021 10:12:10 +0000 https://www.ampsandtubes.com/shop/ace-evo/

Entdecken Sie den neuen ACE eVo, ein 20-Watt-Biest voller Energie.
Zwei Kanäle, mit einem schönen, glänzenden Clean-Kanal, perfekt mit einem Hauch von Delay, und einem knorrigen Lead-Kanal, super vielseitig, geeignet für bluesige Licks bis hin zu wilden Metal-Riffs.
20w mit 6L6 für einen großen und massiven Sound, mit viel Präsenz im Bass und perfekt definierten Höhen.
Alle Röhrenschaltungen, einschließlich Effektschleife. Lautsprecherausgänge 8ohms + 16ohms. Optionaler Fußschalter zum Umschalten der Kanäle.

37cm x 20cm x 20cm – 7kg500

System ohne Vorurteile

Wechseln Sie Ihre Röhren selbst, zu Hause, ohne Ausrüstung. Sie haben die freie Wahl zwischen 6L6- und EL34-Leistungsröhren, Sie können sogar eine 6L6 und eine EL34 mischen.

  • Controls :

    Gain1/Gain2/Bass/Mid/Treble/Volume1/Volume2.

  • Features :

    Tube buffered effect loop, 8 + 16 ohms speaker outputs.

  • Power :

    Single ended, Class A, 20w switchable to 2w. 230v only!.

  • Tubes :

    4x 12ax7 + 2x 6L6. User swappable/mixable EL34/6L6 power tube, no bias needed.

  • Construction :

    High quality PCB.

  • Dimensions :

    37cm wide, 20cm high, 20cm deep & 7kg500.

]]> https://www.ampsandtubes.com/shop/evo/feed/ 0
